Rear Right Drilled and Slotted Rotor

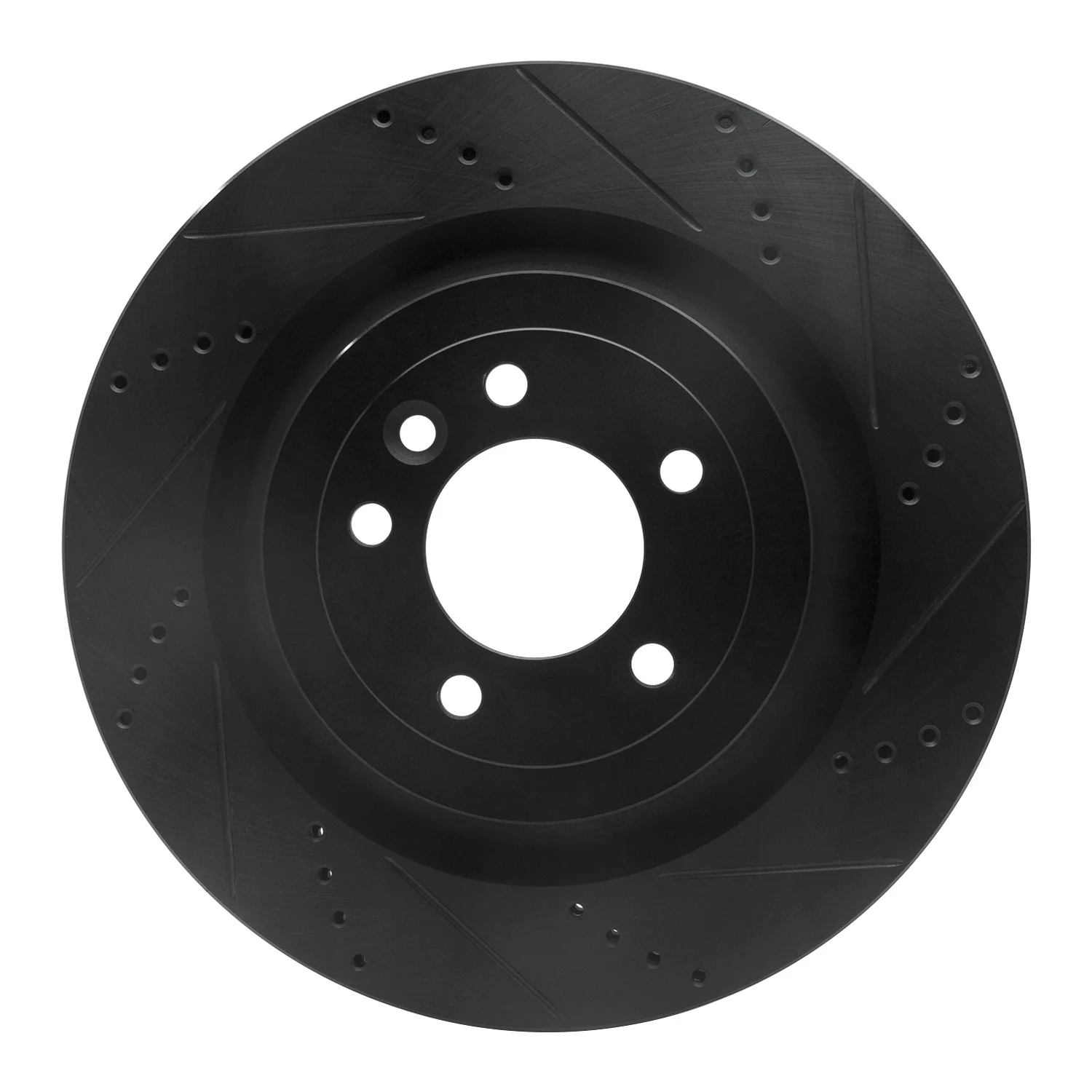

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black, part number 633-11023R, is a rear right disc brake rotor built for Land Rover applications that call for a 365 mm vented rotor with a directional slotted-and-drilled surface. It combines a plain braking face with a zinc black hat finish and rust-resistant coating for a clean, service-ready appearance.

Use 633-11023R when you need a rear rotor for Land Rover Defender, Discovery, Range Rover, and Range Rover Sport fitments listed below. The drilled and slotted design supports consistent brake surface cleaning, while the vented construction and 5-lug pattern match the specified vehicle configurations.

Key Features

• Part number: 633-11023R
• Rear right disc brake rotor for select Land Rover vehicles
• Slotted X drilled, directional brake surface
• Vented rotor construction
• Outside diameter: 365 mm
• Nominal thickness: 25 mm; discard thickness: 22 mm
• 5 bolt holes / 5 stud-lug holes
• Bolt circle diameter: 120 mm
• Center hole diameter: 79 mm
• Zinc black hat finish with rust-resistant coating

Product Details

The DFC Brake Rotor - Drilled and Slotted - Black line from Dynamite Friction is focused on direct-fit brake rotor replacement with application-specific sizing and finish details. This rotor uses a directional slotted and drilled surface to help maintain a cleaner contact area under braking, while the vented design supports heat management in demanding rear brake service. The black zinc hat finish adds corrosion resistance and a more finished appearance behind the wheel.

Compatible With select Land Rover Defender 90, Defender 110, Defender 130, Discovery, Range Rover, and Range Rover Sport rear right applications, including 2021-2026 Land Rover Discovery rear right, 2022-2024 Land Rover Defender 110 rear right, 2024-2026 Land Rover Defender 130 rear right, and 2013-2019 Land Rover Range Rover rear right. This part number, 633-11023R, also appears in fitments for 2018-2022 Range Rover Sport rear right and other listed configurations with notes such as 6-piston front calipers, 380 mm front discs, 22-inch wheels, or TRW front calipers.

What It Helps Address

• Rear brake rotor wear on listed Land Rover models
• Brake pulsation caused by rotor surface irregularity
• Reduced braking consistency from heat buildup
• Corrosion on exposed rotor hat surfaces
• Service replacement for drilled and slotted rear rotor applications

Installation Notes

Verify rear right position, rotor diameter, bolt pattern, center bore, and thickness before installation. This rotor is directional, so orientation matters during mounting. Confirm the vehicle-specific notes in the fitment list, especially on Defender and Range Rover Sport applications that reference caliper or wheel package requirements. Part number 633-11023R should be matched to the exact rear axle position shown in the catalog fitment.

Quality Assurance

Dynamite Friction supplies this rotor with a rust-resistant coating and zinc black hat finish for added surface protection in service. The listed dimensions and vehicle-specific fitment data support accurate replacement selection for the confirmed Land Rover applications.

• Fits 2025-2026 Land Rover Defender 110, rear right; 6 piston front calipers, 380 mm front disc
• Fits 2024-2026 Land Rover Defender 130, rear right; 6 piston front calipers, 380 mm front disc
• Fits 2026 Land Rover Defender 90, rear right
• Fits 2022 Land Rover Defender 90, rear right
• Fits 2021-2026 Land Rover Discovery, rear right
• Fits 2025 Land Rover Defender 90, rear right; 6 piston front calipers, 380 mm front disc
• Fits 2022-2024 Land Rover Defender 110, rear right
• Fits 2023-2024 Land Rover Defender 90, rear right; 22 inch wheels
• Fits 2023 Land Rover Defender 130, rear right; 22 inch wheels
• Fits 2020-2022 Land Rover Defender 110, rear right; 6-piston front calipers (380 mm front rotors)
• Fits 2021-2022 Land Rover Defender 90, rear right; 6 cylinder engine, 6-piston front calipers, 380 mm front disc
• Fits 2022 Land Rover Range Rover, rear right
• Fits 2013-2019 Land Rover Range Rover, rear right
• Fits 2018-2022 Land Rover Range Rover Sport, rear right
• Fits 2020-2021 Land Rover Range Rover, rear right; 6-piston front calipers
• Fits 2020-2021 Land Rover Range Rover Sport, rear right; 6-piston front calipers
• Fits 2014-2017 Land Rover Range Rover Sport, rear right; front calipers
• Fits 2017 Land Rover Range Rover Sport, rear right; TRW front calipers, 365 mm rear rotors
