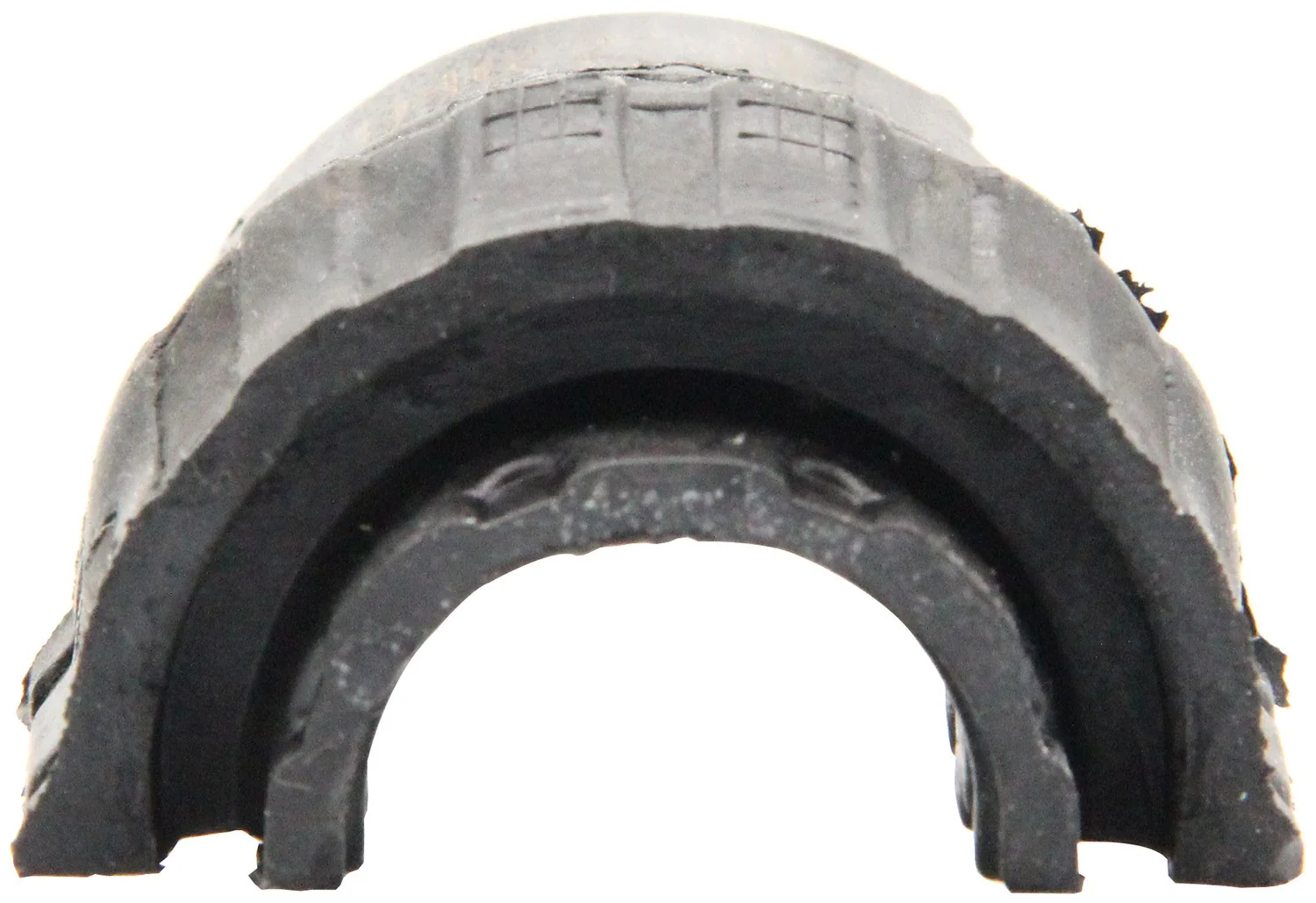

Delphi TD2009W Suspension Stabilizer Bar Bushing Kit - Rear To Frame
Delphi Rear Stabilizer Bar Bushing Kit TD2009W
Restore rear sway bar support with the Delphi TD2009W stabilizer bar bushing kit. This standard replacement kit uses rubber bushings in a black finish and is built for rear-to-frame applications on select Audi Q7 and Volkswagen Touareg models.
Delphi applies OE-focused dimensional and material analysis to help maintain proper fit and suspension control. The TD2009W is a 4-piece bushing kit for drivers looking for a direct replacement for worn rear stabilizer bar bushings.
Key Features
- Part number: TD2009W
- Suspension stabilizer bar bushing kit for rear to frame mounting
- Rubber construction with black finish
- Standard replacement grade
- Bushing quantity: 4
- Inside diameter: 24.5 mm (0.965 in)
- Dimensions: 54.0 mm length, 53.0 mm width, 38.0 mm height
- No grease fitting included
- No mounting hardware included
- No bracket included
Detailed Description
The Delphi TD2009W is a rear stabilizer bar bushing kit engineered for rear-to-frame service on 2007-2015 Audi Q7 and 2004-2015 Volkswagen Touareg models. Delphi validates its aftermarket steering and suspension components with temperature and corrosion exposure testing, including operation below -40 degrees C, above 120 degrees C, and extended salt spray exposure. That testing supports consistent material performance in demanding road conditions.
As an OE-style replacement, TD2009W is sized for the specified stabilizer bar interface and uses rubber construction to help maintain the rear sway bar’s mounting support. If you are searching for a rear sway bar bushing kit for Audi Q7 or Volkswagen Touareg, Delphi TD2009W is a direct-fit service part for the listed applications. This part cross-references OE numbers 7L0 511 413 C and 955 333 792 30 for the same application.
What It Helps Address
- Rear stabilizer bar movement caused by worn bushings
- Clunking or rattling from the rear suspension area
- Excess play at the rear sway bar mounting point
- Reduced suspension stability from deteriorated rubber bushings
- Service replacement for cracked or compressed rear-to-frame bushings
Installation Notes and Tips
Install TD2009W only on the rear-to-frame position listed for the vehicle. Verify stabilizer bar diameter and bushing dimensions before installation, and inspect the mounting surface for wear or corrosion. Because mounting hardware is not included, reuse or source the required fasteners as needed for the repair.
Quality Assurance
Delphi uses OE-based engineering and dimensional analysis to support fitment accuracy and material consistency across its aftermarket suspension portfolio. The TD2009W is built as a standard replacement part for the listed Audi Q7 and Volkswagen Touareg applications.
